Our Dehydrator Machine are mainly divided into three categories: Centrifugal dewatering machines, air-drying dewatering machines, and vibration draining dewatering machines. Let us introduce them separately below:
No. 1). Centrifugal Dehydrator Machine:
Removing the material surface water based on the centrifuge principle. This machine equips with a quake proof device, it will reduce the vibration caused by off-center of materials. Electromagnetic brake improves working efficiency.
Digital automatic control device is made of stainless steel, which meets the hygienic requirements. It is necessary equipment for the dehydration of fruits and vegetables after washing, pulping and separating of egg white and yolk.

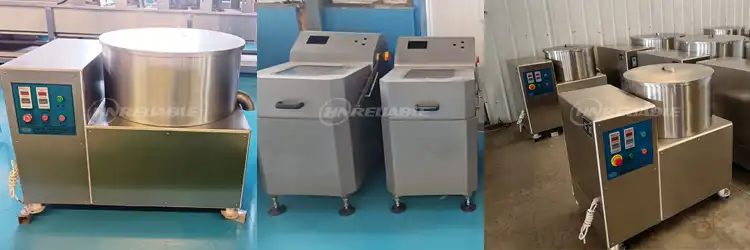

Some photos for machine:
Details for different models:
Model | Power/Voltage | Weight | Dimension | Capacity |
TS500 | 0.75kw/380v or customized | 300 kg | 940*560*830mm | 8-10kg/time |
TS600 | 1.1kw/380v or customized | 380 kg | 1050*660*930mm | 15-20kg/time |
TS700 | 1.5kw/380v or customized | 470 kg | 1180*750*930mm | 25-30kg/time |
TS800 | 2.2kw/380v or customized | 580 kg | 1280*820*1000mm | 35-40kg/time |
Below is our new machine: Intelligent frequency conversion dehydrator machine, suit for Bean sprouts, cabbage shreds, etc.
Please contact customer service for more information.
No. 2). Air-drying Dewatering Machine:
Dayang brand air dryer is equipped with a fully automatic water removal system. The air drying process is simple to operate and has high output. It uses a large air volume and low noise fan to dry naturally without causing damage to the product. And transports them through the mesh belt and flips them many times, and there is reverse The air device prevents blind spots from drying out, and the drying effect of the air dryer is good.
The equipment adopts frequency conversion conveying, and the speed is adjustable. The conveying is stable. The equipment has digital automatic control and is made of stainless steel. In addition to the dehydration function, it has the functions of removing oil stains and scales. And the machine technology Stable performance and high efficiency. It is an ideal air-drying equipment for fruits and vegetables.
This dewatering machine can be used for all kinds of fruits and vegetables, and suit for many package bags、bottles and some other products also.

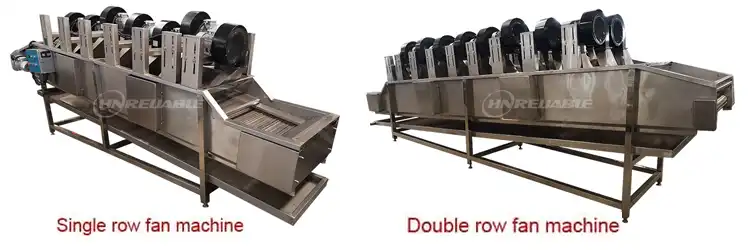

Some photos for machine:
Details for different models:
Detailed parameters of single row fan machine | ||||
Model | Power/Voltage | Weight | Dimension | Fan Quantity |
FG3000 | 4.5kw/380v or customized | 300 kg | 3000*950*1600mm | 6 pcs |
FG4000 | 6kw/380v or customized | 400 kg | 4000*950*1600mm | 7 pcs |
FG5000 | 7.5kw/380v or customized | 500 kg | 5000*950*1600mm | 9 pcs |
FG6000 | 9kw/380v or customized | 600 kg | 6000*950*1600mm | 11 pcs |
FG7000 | 11.25kw/380v or customized | 700 kg | 7000*950*1600mm | 14 pcs |
Detailed parameters of double row fan machine | ||||
FG3000-2 | 9.75kw/380v or customized | 400 kg | 3000*1150*1600mm | 12 pcs |
FG4000-2 | 11.25kw/380v or customized | 500 kg | 4000*1150*1600mm | 14 pcs |
FG5000-2 | 41.25kw/380v or customized | 600 kg | 5000*1150*1600mm | 18 pcs |
FG6000-2 | 15.75kw/380v or customized | 700 kg | 6000*1150*1600mm | 20 pcs |
FG7000-2 | 17.25kw/380v or customized | 800 kg | 7000*1150*1600mm | 22 pcs |
No. 3). Vibration drainage dewatering machine:
The whole machine of Dayang brand Vibration drainage dewatering machine is made of stainless steel. The aperture of different sizes can be customized according to the different needs of customers. It can be used to screen waste or unqualified finished products, and can remove most of the water on the product surface.
The equipment has an inclined angle. The finished product is smoothly transferred to the next program, and is equipped with a collection port and a tray to collect the filtered waste. It is very convenient to use and can be used with an Fruit and vegetable processing equipment production line.

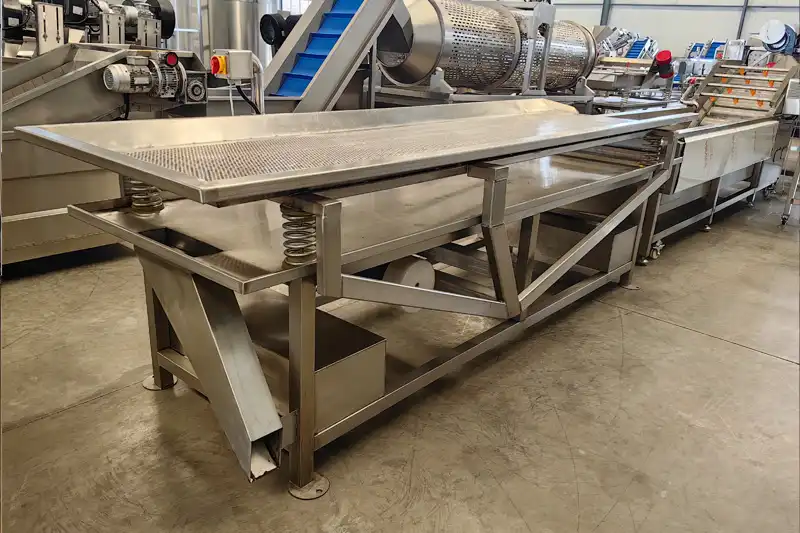

Photo for machine:
Details for different models:
Model | Power/Voltage | Dimension |
ZDS-1500 | 0.25kw/380v or customized | 1500x1130x1000 mm |
ZDS-2000 | 0.25kw/380v or customized | 2000x1130x1000 mm |
ZDS-3000 | 0.25kw/380v or customized | 3000x1130x1000 mm |

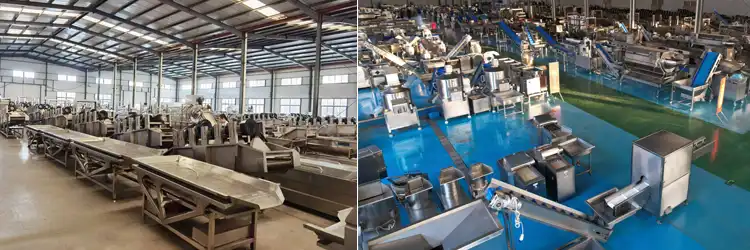

Our warehouse:
Reminder:
Thank you very much for visiting our website. We specialize in producing and exporting all kinds of fruit and vegetable processing equipment, French fries and potato chip production lines, semi-automatic and fully automatic.
If you have any questions, please click the "Chat online" contact our online customer service or leave message. We will respond positively!
