Introduction of root vegetable processing line
The root vegetable processing line is mainly for potatoes, sweet potatoes, radishes, ginger, onion, and other vegetables for pre-processing.
The primary production process includes root removal, cleaning, cutting, etc.
Capacity: 500kg/h, 1000kg/h, and customized capacity
Processing flow of root vegetable processing line
Washing and lifting machine - vegetable spiral peeling machine - vegetable picking conveyor - Elevator - vegetable cutting machine (shredding, mowing strips, slicing, dicing, splitting flaps, hobbing blocks, etc.) - vegetable washing machine - vegetable air drying machine - packing machine
Main products of root vegetable processing line

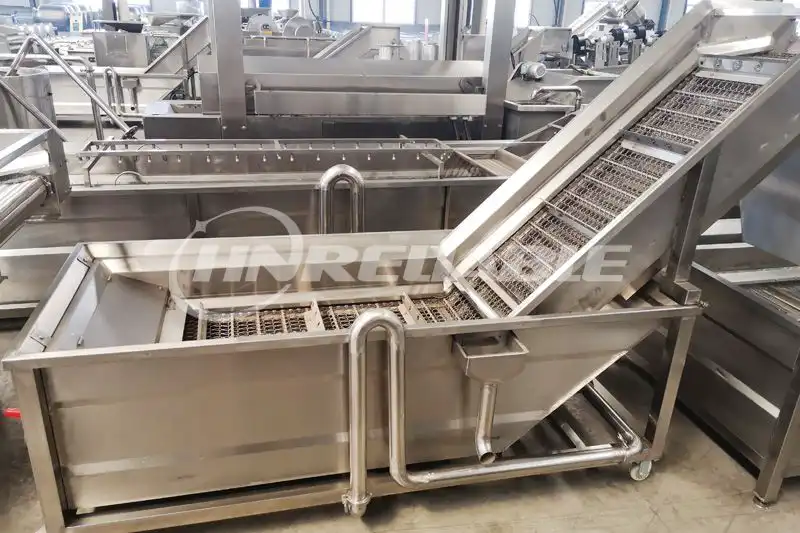

Vegetable Washing and lifting machine
The primary function of the washing and lifting machine is to clean the vegetables simply before processing and then use the lifting device to convey the materials to the subsequent equipment for processing.
Vegetable spiral peeling machine
The spiral peeler is a large-capacity peeling machine. The spiral conveyor inside the device can automatically transport the material from the inlet to the outlet, realizing automatic production.
Vegetable picking conveyor
A picking conveyor is an essential machine in vegetable processing production. It is used to pick out the unqualified material later debris during the material conveying process by manual means in various stages of processing to ensure the finished product rate.
Elevator
Many vegetable processing machines have a lower discharge port than the inlet port.
The purpose of the vegetable elevator is to lift the material between the discharge port and the inlet port of different machines for transmission.
Vegetable cutting machine (shredding, mowing strips, slicing, dicing, splitting flaps, hobbing blocks, etc.)
According to the different requirements of the final use and shape of vegetables, vegetable cutting machines are usually divided into various types, such as vegetable shredders, vegetable cutters, multi-functional vegetable cutters, etc.
Vegetable Washing Machine
A vegetable washing machine generates bubbles through a bubble-generating device, and the impact produced by the bubble break can effectively clean vegetables and protect their integrity of vegetables.
The waste will be discharged through the outlet at the bottom of the vegetable cleaning machine.

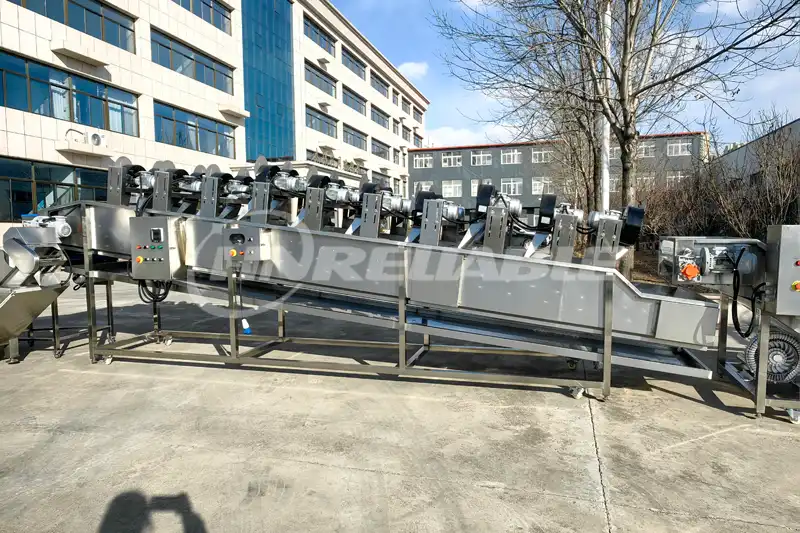

Vegetable air drying machine
The washed vegetables have more water, the vegetable air dryer uses the mesh belt to transfer the vegetables, and at the same time, the upper part of the machine is equipped with a certain number of fans to blow the water on the surface of the vegetables to dry quickly, the mesh belt can make the vegetables go through many times to turn over, and the air drying is more thorough.
Packing machine
The packaging machine in the vegetable processing line needs to be customized according to the parameters of packaging quantity, size rules, etc.
