HNRELIABLE Machinery have the whole series of washing machine, such as air bubble washing machine , high pressure spray washing machine , brush washing machine , vortex washing machine and rotary drum washing machine.
No matter what material you will wash, no matter where you will use (Central Kitchen , Clean Vegetable Distribution Center , Food and Beverage Factory), you can always find solution here.

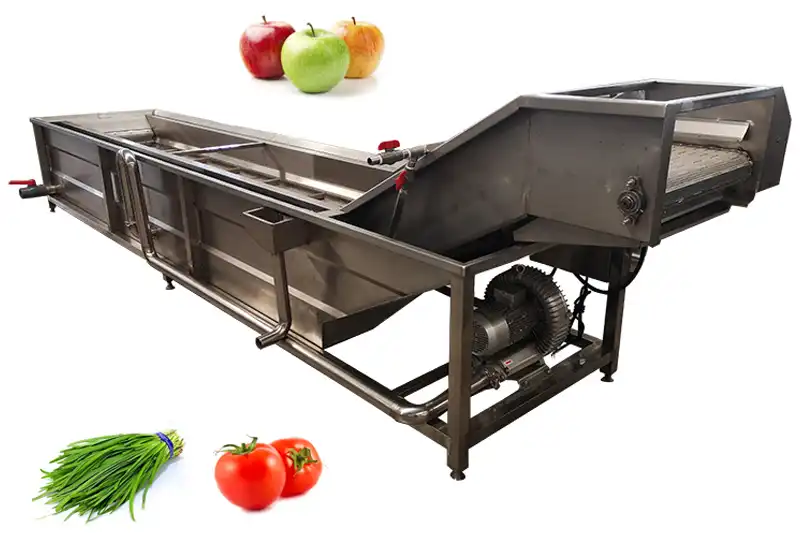

1. Air Bubble Washing Machine
This machine uses high-pressure water flow and bubble generating device to impact the surface of the material. When the bubble breaks in contact with the raw material, energy will be generated, which will have an impact and scrubbing effect on the surface of the material.
Why Air Bubble Washing Machine?
1. Wide range of applications. The bubble cleaning machine is a universal cleaning machine, whether you are cleaning roots vegetables, leafy vegetables or fruits, the bubble cleaning machine can be used.
2. Moderate cleaning, no damaged to material skin.
Specification
| Model | Power | Weight | Dimension | Capacity |
|---|---|---|---|---|
| CQX-200 | 1.87kw | 230kg | 2500*1000*1200mm | 500kg/h |
| CQX-300 | 1.87kw | 270kg | 3000*1000*1200mm | 1000kg/h |
| CQX-400 | 2.57kw | 380kg | 4000*1000*1200mm | 2000kg/h |
| CQX-500 | 3.37kw | 480kg | 5000*1000*1200mm | 3000kg/h |

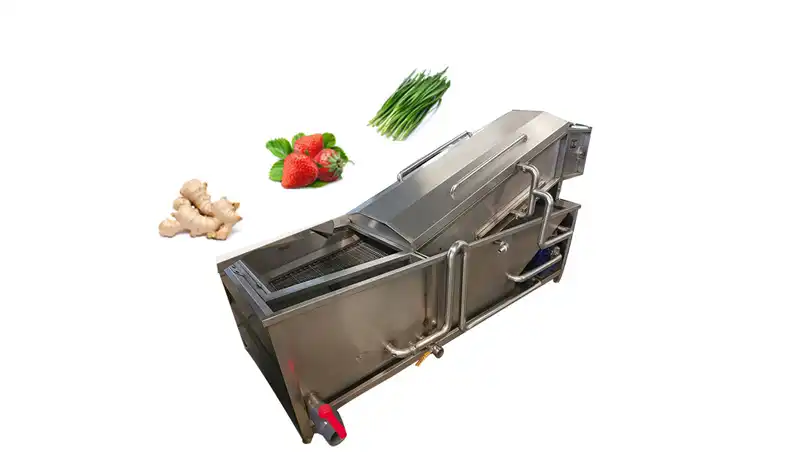

2. High Pressure Spray Washing Machine
This machine uses high-pressure water to clean materials. The high-pressure water pump circulates the water from the water tank to the spray pipe. Then it will be sprays out by the pipe nozzle, forming a high-pressure and high-temperature water flow to wash and flush the dirt away from material surface.
Why High Pressure Spray Cleaning Machine？
1. It's widely used on material that the surface is not smooth with deep groove ,hole,and small crack, such as ginger, potato, And also the materials are easily disrupted by water flow, such as leeks, spinach and other leafy vegetables.
2. Large output, suitable for medium and large clean vegetable processing sites.
Specification
| Model | Power | Weight | Dimension | Capacity |
|---|---|---|---|---|
| GQX300 | 5.25kw | 200kg | 2500*1000*1200mm | 500kg/h |
| GQX400 | 7.75kw | 260kg | 3000*1000*1200mm | 1000kg/h |
| GQX500 | 9.25kw | 320kg | 4000*1000*1200mm | 2000kg/h |
| GQX600 | 11.45kw | 400kg | 5000*1000*1200mm | 3000kg/h |

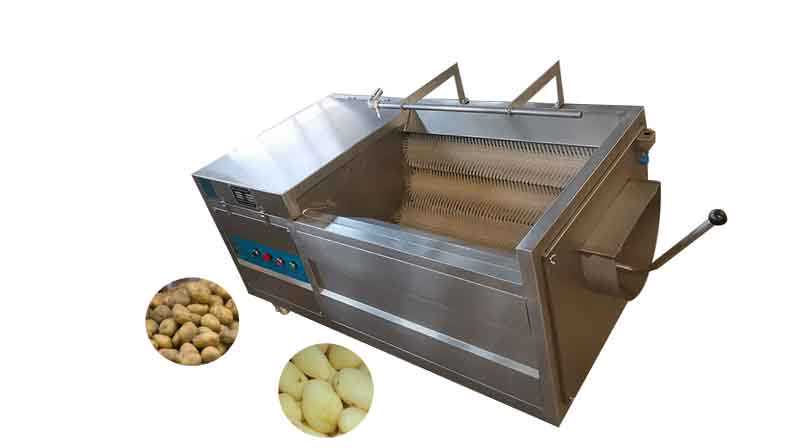

3. Brush Washing Machine

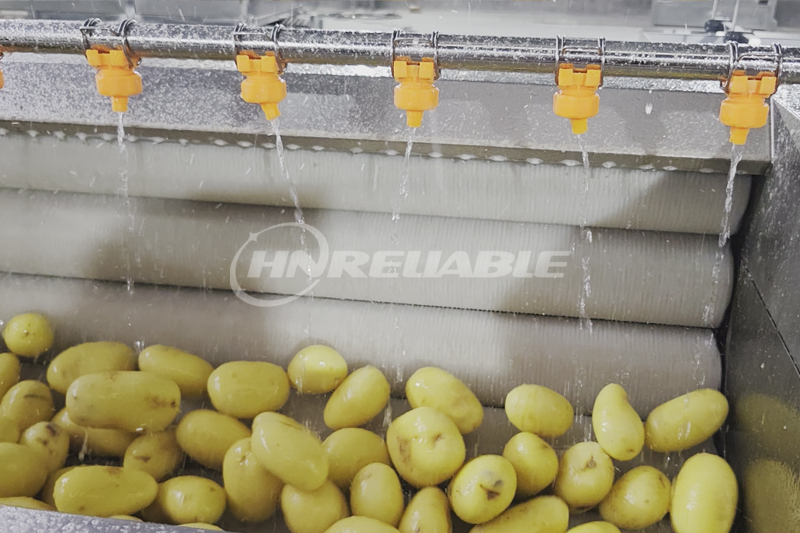

The brush cleaning machine is arranged with brush rollers to form a semi-closed cleaning tank. The nylon rollers rotate in the same direction to realize the turning of the material moving, the material is cleaned by the friction between the material and the brush and the above spray.
Why Brush Washing Machine?
1. It’s widely used for root vegetable cleaning, such as potato, cassava etc . It can also be used for cleaning scallops.
2. Impoted nylon brush, this consumables can be used 2-3 years.
3. Small, middle, large model for your choice.
Specification
| Model | Power | Weight | Dimension | Capacity |
|---|---|---|---|---|
| MQT800 | 1.1kw | 260kg | 1600*730*840mm | 800kg/h |
| MQT1200 | 1.5kw | 300kg | 2120*910*1020mm | 1500kg/h |
| MQT1500 | 2.2kw | 380kg | 2400*910*1020mm | 1800kg/h |
| MQT1800 | 3kw | 400kg | 2550*910*1020mm | 2000kg/h |
| MQT2000 | 3kw | 460kg | 2900*910*1020mm | 2500kg/h |
| MQT3000 | 4kw | 490kg | 2950*1055*1045mm | 3500kg/h |
| MQT4000 | 4kw | 600kg | 3030*1170*1215mm | 4500kg/h |
| MQT5000 | 5.5kw | 700kg | 3050*1250*1310mm | 5500kg/h |

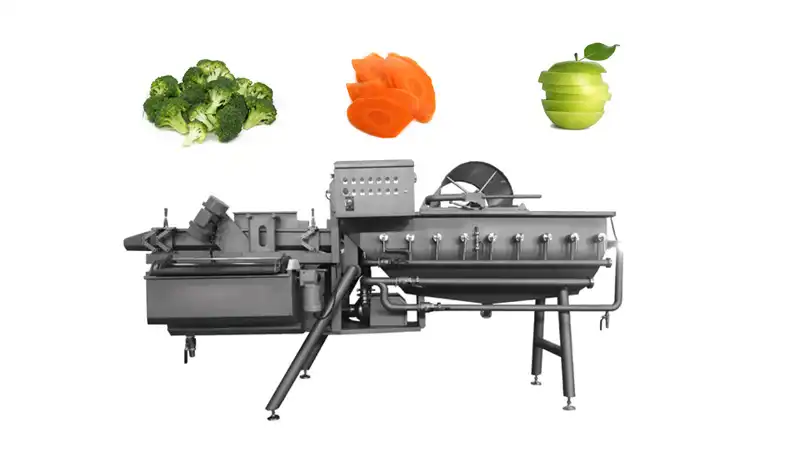

4. Vortex Washing Machine
With the whirlpool type water vortex, formed by the activity of backflow, clean the material , It can achieve fast and good effect.
Why Vortex Washing Machine?
1. Mainly suitable for washing vegetables and fruit after cutting, such as cabbage, lettuce, radish, potatoes, etc.
2. Large output, the capacity can achiever 2 Tons every hour.
Specification
| Model | Power | Weight | Dimension | Capacity |
|---|---|---|---|---|
| WL-4000 | 4.4kw | 730kg | 4020*1710*1650mm | 800-1000kg/h |

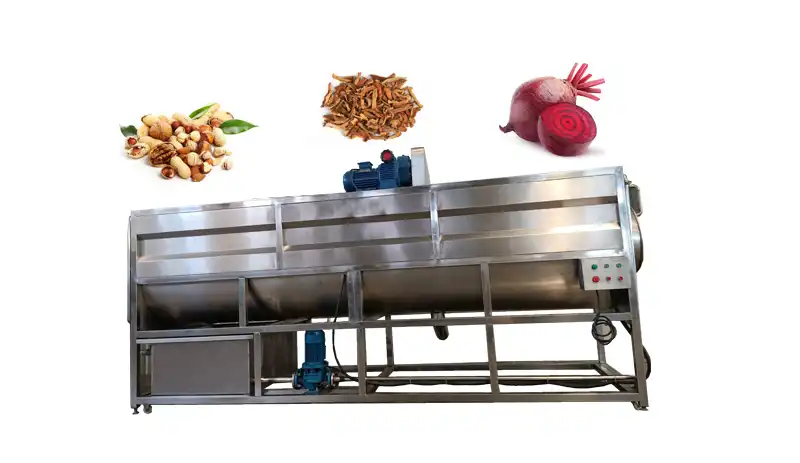

5. Rotary Drum Washing Machine
With the rolling action of the roller, friction is generated between the material and the material and between the material and the roller to clean the material surface.
Why Rotary Drum Type Washing Machine?
1. Very large production, the MAX capacity can be 15 Tons every hour.
2. Wide Application: Roots vegetable, herb, dried fruit, fruits etc.
Specification
| Model | Power | Weight | Dimension | Capacity |
|---|---|---|---|---|
| GQX3000 | 3.75kw | 470kg | 3000*1200*2200mm | 2-3ton/h |
| GQX4000 | 5.5kw | 570kg | 4000*1300*2300mm | 3-4ton/h |
| GQX5000 | 7.5kw/ | 670kg | 5000*1300*2300mm | 4-5ton/h |
Ⅰ. If you don’t know which machine is more suitable for you. Please kindy let us know the following information as follows , then we will supply you the suitable solution:
1. What material you will wash ?
2. What the capacity you need every hour ?
Ⅱ. If you need the whole line for washing line, we can also connect pre-treatment and post-treatment machine with washing cleaing machine into the whole washing cleaning production line.
